LED TRAIL
EZ-Mount Tri-proof LED light

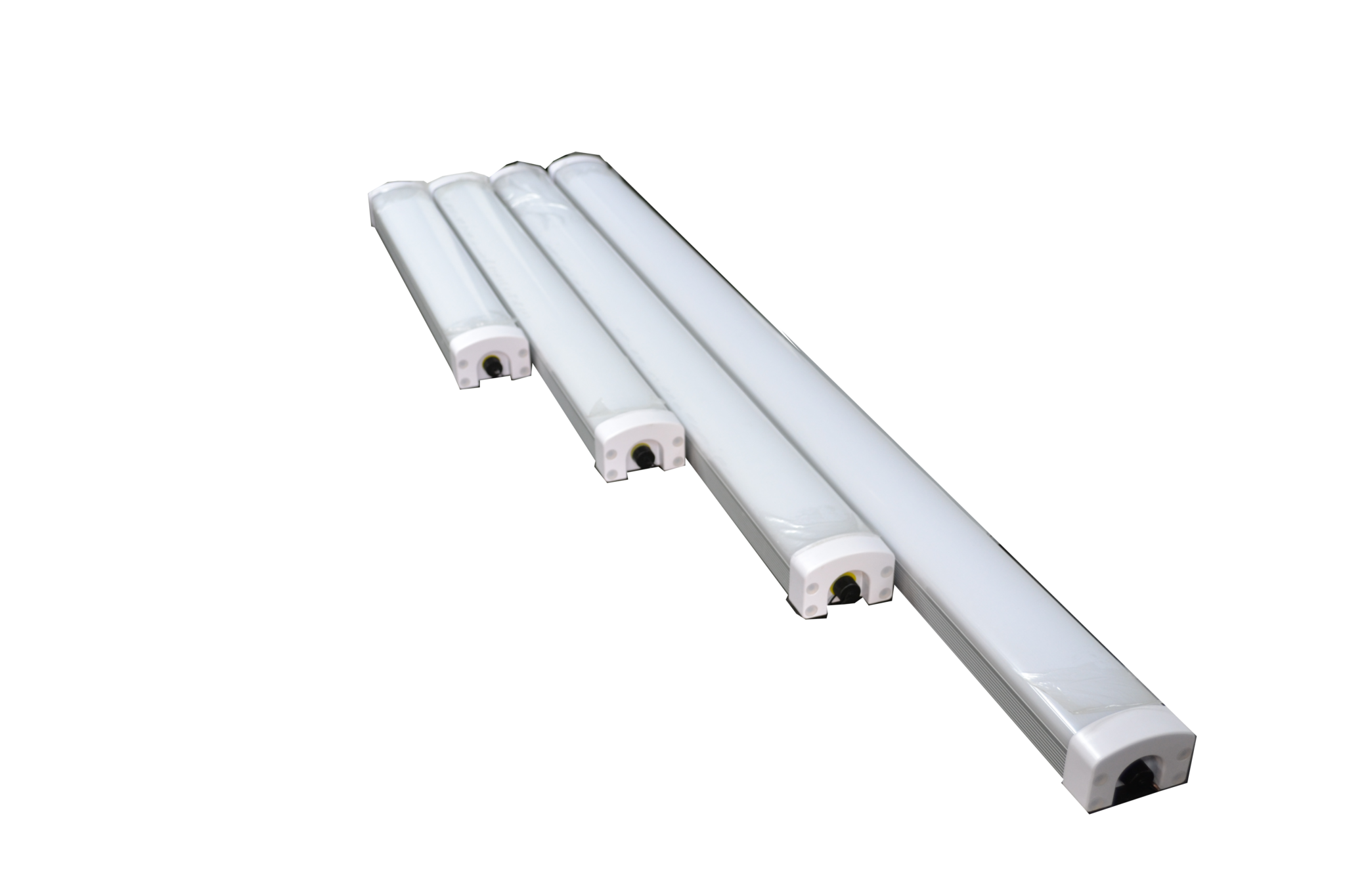

EZ-Mount Tri-Proof LED linear lights by LED Trail are the efficient and heavy-duty alternative to traditional high and low bay light fixtures. These lights are used in industrial lighting, machine shops, textile mills, pharmaceutical plants, warehouse lighting, parking garage lighting, tunnel lighting, supermarket lighting and many more applications. These lights emit a wide 120° beam angle at 100 lumens per watt, using significantly less energy than any fluorescent or other types of lighting, reducing maintenance and re-lamping costs. EZ-Mount Tri-Proof is specialty made with corrosion free aluminium housing. It is waterproof and uses a frosted polycarbonate lens that is dust tight as well as water and impact resistant. These lights can be mounted on ceilings or on walls with included hardware or may be suspended from a ceiling. Optional features include dimming and multi-level sensor versions. EZ-Mount Tri-Proof LED linear lights can also be linked together to lower installation time and cost.
Specifications
32230
| Watt | 30 |
|---|---|
| Size | 23.6″ * 3.5″ * 2.4″ |
| CCT | 5000K |
| Luminous Output | 3900lm |
| Voltage | AC100-277V |
32340
| Watt | 40 |
|---|---|
| Size | 35.4″ * 3.5″ * 2.4″ |
| CCT | 5000K |
| Luminous Output | 5200lm |
| Voltage | AC100-277V |
32440
| Watt | 40 |
|---|---|
| Size | 47.7″ * 3.5″ * 2.4″ |
| CCT | 5000K |
| Luminous Output | 5200lm |
| Voltage | AC100-277V |
32460
| Watt | 60 |
|---|---|
| Size | 47.7″ * 3.5″ * 2.4″ |
| CCT | 5000K |
| Luminous Output | 7800lm |
| Voltage | AC100-277V |
32890
| Watt | 90 |
|---|---|
| Size | 94.5″ * 3.5″ * 2.4″ |
| CCT | 5000K |
| Luminous Output | 11700lm |
| Voltage | AC100-277V |
328120
| Watt | 120 |
|---|---|
| Size | 94.5″ * 3.5″ * 2.4″ |
| CCT | 5000K |
| Luminous Output | 15600lm |
| Voltage | AC100-277V |
Models & Options
| Model | SKU | Watt | Size | CCT | Luminous Output | Voltage | Dimensions |
|---|---|---|---|---|---|---|---|
| 32230 30W | 32230 | 30 | 23.6″ * 3.5″ * 2.4″ | 5000K | 3900lm | AC100-277V | 23.6 × 3.5 × 2.4 in |
| 32340 40W | 32340 | 40 | 35.4″ * 3.5″ * 2.4″ | 5000K | 5200lm | AC100-277V | 35.4 × 3.5 × 2.4 in |
| 32440 40W | 32440 | 40 | 47.7″ * 3.5″ * 2.4″ | 5000K | 5200lm | AC100-277V | 47.2 × 3.5 × 2.4 in |
| 32460 60W | 32460 | 60 | 47.7″ * 3.5″ * 2.4″ | 5000K | 7800lm | AC100-277V | 47.2 × 3.5 × 2.4 in |
| 32890 90W | 32890 | 90 | 94.5″ * 3.5″ * 2.4″ | 5000K | 11700lm | AC100-277V | 94.5 × 3.5 × 2.4 in |
| 328120 120W | 120 | 94.5″ * 3.5″ * 2.4″ | 5000K | 15600lm | AC100-277V |
6 models listed.
Documents & Downloads
Spec Sheets
Photometric Files
Interested in the EZ-Mount Tri-proof LED light? Contact us today.
