DC360
The DC360 is a charging station that supports either dual CCS1 or CCS1 + CHAdeMO for Level 3 fast charging. Supplying 360kW of constant power with an input of 400Amps. Built to high safety standards, it offers remote monitoring and is suitable for both indoor and outdoor use.
Specifications
AC Nominal Input
| Phase/Lines | 3 phase + neutral + PE |
|---|---|
| Voltage | 480V |
| Max. input current | 435A |
| Frequency | 50Hz / 60Hz (±10%) |
DC Nominal Output
| Voltage | 150-1000V DC |
|---|---|
| Constant power | 360KW |
Electrical Parameter
| Power Factor | ≥0.99 |
|---|---|
| Unequal Current Ratio | ≤ 5% |
| Stable voltage accuracy | ≤±0.5% |
| Stable Current Accuracy | ≤±1% |
| Efficiency | ≥95% (50%-100% load) |
User Interface
| Charging Outlet | Dual Connector CCS1, or CCS1 + CHAdeMO |
|---|---|
| Cable Length | 16.4 Feet (standard) |
| LED Indicator | Diode Strip Light |
| LCD screen | 10-inch Daylight readable touchscreen |
| Emergency Stop Button | Yes |
| Startup Mode | Plug-and-play/RFID card |
| RFID | Yes |
Communication
| Connectivity | 4G, Wi-Fi, Ethernet |
|---|---|
| Communication Protocol | OCPP 1.6 (JSON) |
Environmental Index
| Operation Temperature | -20°C ~ 65°C |
|---|---|
| Working Humidity | 5%-95% without condensation |
| Working Altitude | <2000m |
| Protection Grade | IP54 |
| Application Site | Indoor/Outdoor |
| Cooling Method | Liquid Cooling |
Protection
| Multiple Protection | Over/Under voltage protection, overload protection, short circuit protection, over/under temperature protection, Surge protection, Communication failure |
|---|---|
| Dimension (HxWxD) | 90 x 37.5 x 31 inch |
| Safety and Compliance | UL and cUL listed |
Documents & Downloads
Spec Sheets
Interested in the DC360? Contact us today.
(971) 200-2760Other Level 3 Chargers

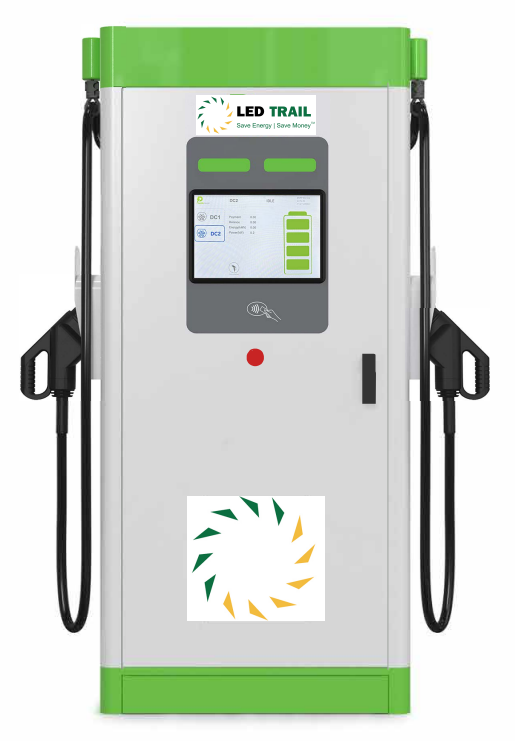

DC300
The DC300 is a charging station that supports either dual CCS1 or CCS1 + CHAdeMO for Level 3 fast charging. Supplying 300kW of constant power with an input of 400Amps. Built to high safety standards, it offers remote monitoring and is suitable for both indoor and outdoor use.

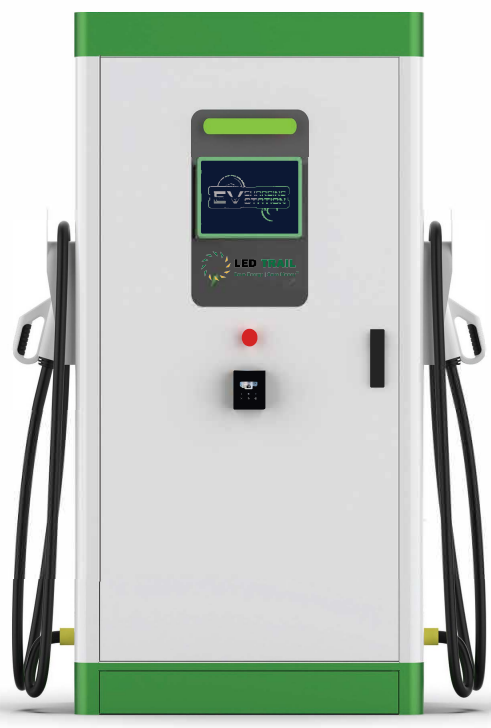

DC60-Cal
The DC60-Cal is a portable charging station that supports either dual CCS1 or CCS1 + CHAdeMO for Level 3 fast charging. Supplying 60kW of constant power with an input of 80Amps. Built to high safety standards, it offers remote monitoring and is suitable for both indoor and outdoor use.

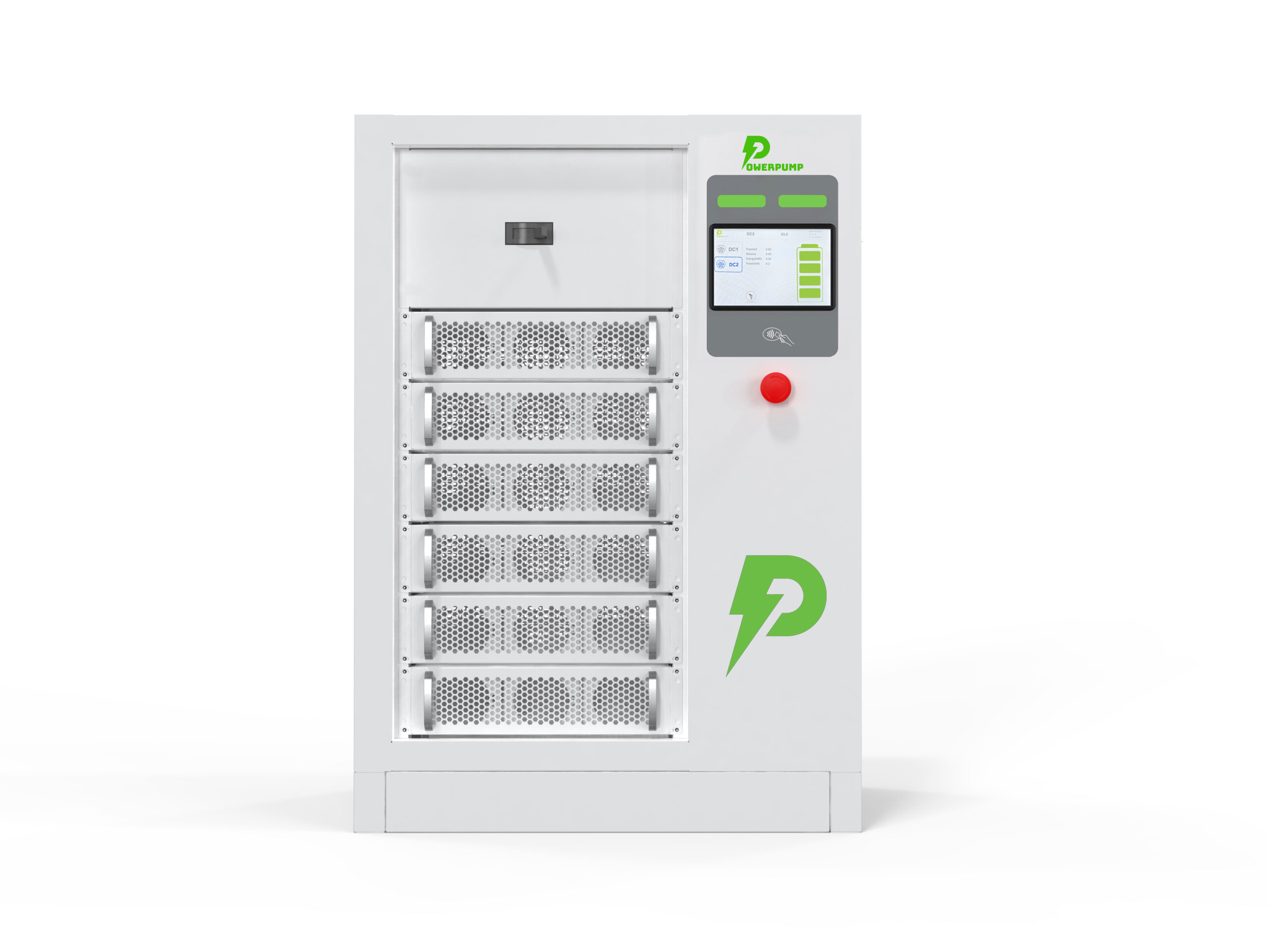

DC60-P
