LED TRAIL
ACL22100

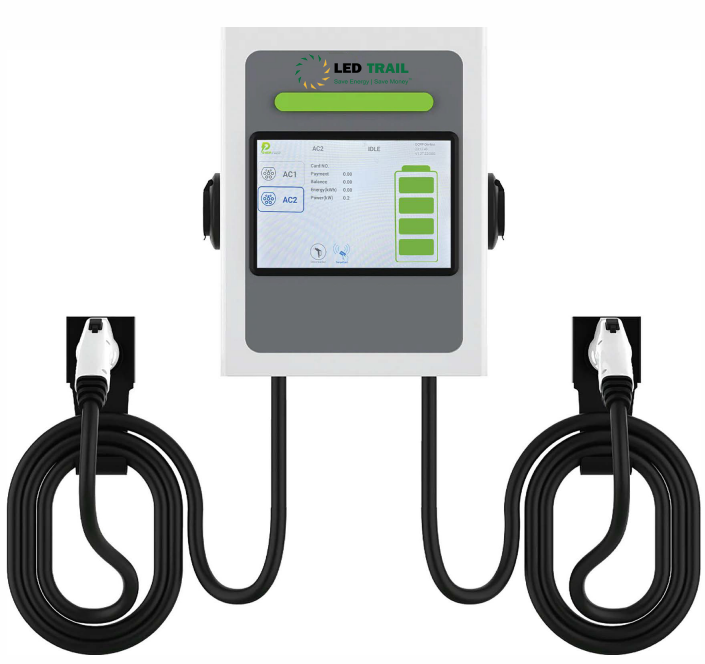

The ACL22100 is a charging station that supports dual J1772 (Type 1) for Level 2 fast charging. Supplying 22kW of constant power with an input of 100Amps. Built to high safety standards, it offers remote monitoring and is suitable for both indoor and outdoor use.
Specifications
Input Cord
| Input Cord | Nema 14-50 |
|---|---|
| AC Power Input Rating | 208/240V AC 50/60Hz SAE standard AC Level 2 |
| AC Power Output Rating (Adjustable) | 22kW / 100A |
| Required Service Panel Breaker | Dedicated Dual Pole 120A |
| Power Wiring | 3 Wire – L1,L2 plus ground |
| Connector Type | Dual Connetor SAE J1772 (Type 1) |
User Interface & Control
| Charging Control | Plug & Play or RFID Card |
|---|---|
| Indicators | Diode Strip Light |
| External Communication | 4G, Wi-Fi, Ethernet |
| OCPP Protocol | OCPP 1.6J |
Safety and Operational Ratings
| Storage Temperature | -40 to 75°C (-40 to 167°F) ambient |
|---|---|
| Operating Temperature | -30 to 55°C (-22 to 131°F) ambient |
| Operating Humidity | Up to 95% non-condensing |
| Cooling Method | Natural Cooling |
Protection
| Electrical Enclosure | Type4 |
|---|---|
| CCID 20 | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Over Load Protection | Yes |
| Short Circuit Protection | Yes |
| Earth Leakage Protection | Yes |
| Ground Protection | Yes |
| Over-Temp Protection | Yes |
| Surge Protection | Yes |
Mechanical
| Dimension (HxWxD) | 59 x 18 x 8 inch |
|---|
Models & Options
| Model | SKU |
|---|---|
| ACL22100 | 10225 |
1 model listed.
Documents & Downloads
Spec Sheets
Interested in the ACL22100? Contact us today.
(971) 200-2760Other Level 2 Chargers
AC5500-G

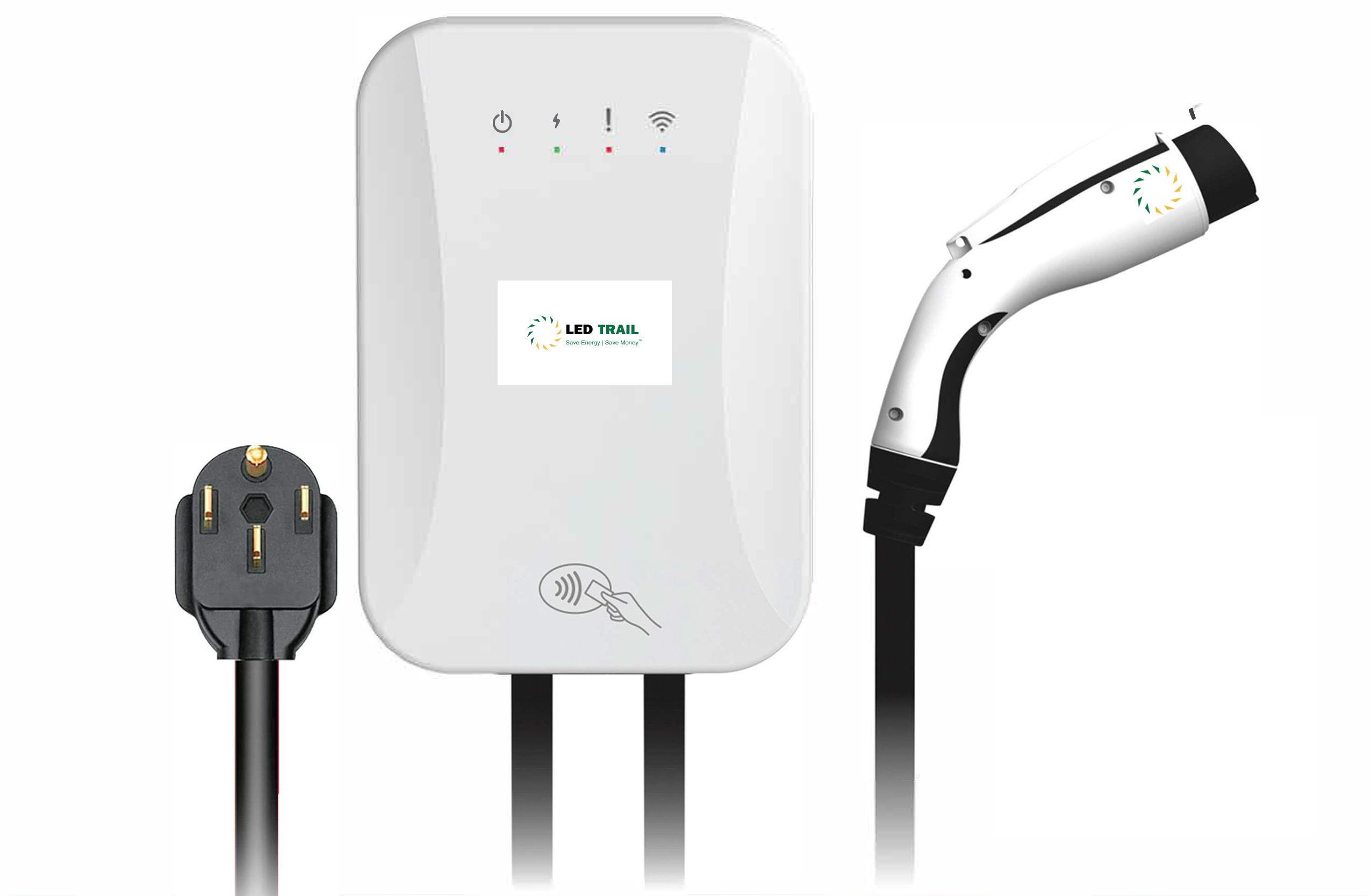

The AC5500-G is a Level 2 EV charger offering up to 10kW power with adjustable 40A output. It features a J1772 connector, easy installation, and is UL listed with an IP65 rating. Equipped with OCPP networked charging and a user-friendly interface, it supports remote monitoring and automatic updates.
AC5500

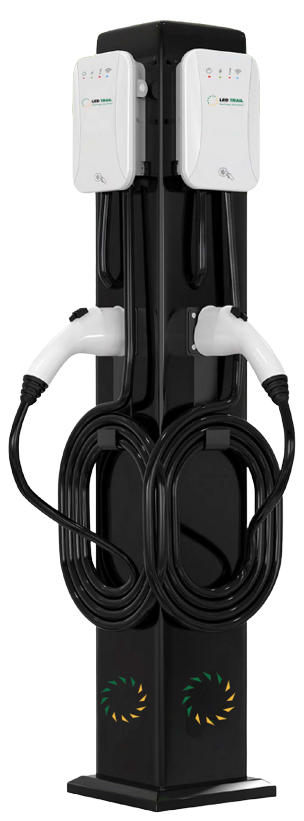

The AC5500 is a charging station that supports dual J1772 (Type 1) for Level 2 fast charging. Supplying 3.5-10kW of constant power with an input of 16-40Amps. Built to high safety standards, it offers remote monitoring and is suitable for both indoor and outdoor use.
